Timing sets
- Thread starter Last Mohecian
- Start date
Last Mohecian
Administrator
Found this post over on the Pontiac forum.
"The Melling 40408, Comp 3112, Speed Pro 224-3112, Cloyes "True Rolller" (with the 3112 in the part number) are all the same set. They're made by Cloyes. They come in different boxes. These are the "true roller" design with individual "seamless" rollers on each link."
And a pic of the Melling piece mine looks nothing like.
http://forums.performanceyears.com/forums/attachment.php?attachmentid=183914&d=1255289761
I have found part numbers for Pontiac from Comp of 2112 and 3112 but no 2212 like is stamped on my gear. More evidence a cheap set was in my motor??????? :smile29:
"The Melling 40408, Comp 3112, Speed Pro 224-3112, Cloyes "True Rolller" (with the 3112 in the part number) are all the same set. They're made by Cloyes. They come in different boxes. These are the "true roller" design with individual "seamless" rollers on each link."
And a pic of the Melling piece mine looks nothing like.
http://forums.performanceyears.com/forums/attachment.php?attachmentid=183914&d=1255289761
I have found part numbers for Pontiac from Comp of 2112 and 3112 but no 2212 like is stamped on my gear. More evidence a cheap set was in my motor??????? :smile29:
Last Mohecian
Administrator
Interesting that the part numbers in the post I found are supposedly all the same part just re-boxed. At Summit, Melling $50, Comp $60 and Cloyes $106. think.gif
HellinnFrnt
New member
mine has 3113 and yeah it says rolon ... maybe 1/8 to 3/16 inch slack on loose side of chain... that too much ?
Last Mohecian
Administrator

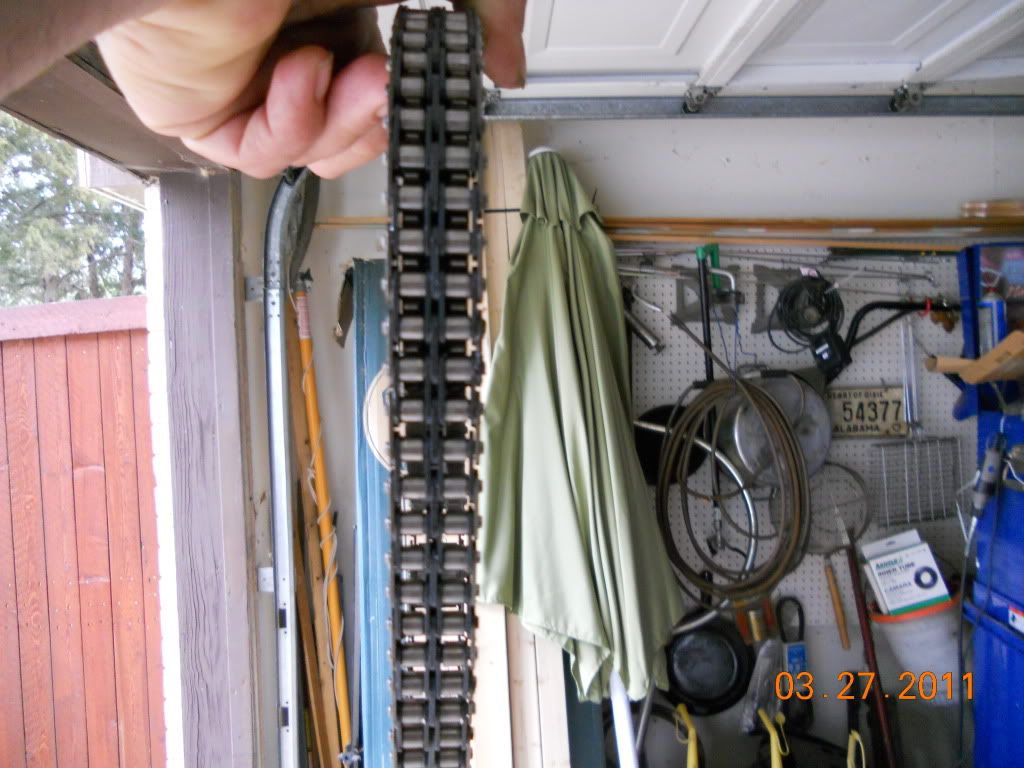

It's been confirmed. Double row not true roller. Check out the seams. I'll be looking for the Melling piece local so I can put my hands on it before I buy it.
(Clickable thumbs)
(Clickable thumbs)
Last Mohecian
Administrator
HellinnFrnt said:mine has 3113 and yeah it says rolon ... maybe 1/8 to 3/16 inch slack on loose side of chain... that too much ?
I'd leave mine if it was 1/8 to a 1/4 on the slack side with the other side tight. Mine is more like 1"
HellinnFrnt
New member
the rollers have seams? holy crap brb
Last Mohecian
Administrator
Last Mohecian
Administrator
HellinnFrnt said:
Look at several of them. On most of mine the seam is on the back side where you can''t really see it.
HellinnFrnt
New member
ok no seams and center link is same thickness as others and all are oval no dips
Last Mohecian
Administrator
Added an arrow to one of the seams. You will have to click on the thumb to see the arrow.
(Clickable Thumb)
(Clickable Thumb)
HellinnFrnt
New member
well COOL ! at least I won't have to worry about that one .... now I'll have to drive to Denton and check the other 2 ... at least they don't have the covers on yet... plus I apparently need a new gasket for this one since someone made me take it apart ....... :smile29:
Last Mohecian
Administrator
HellinnFrnt said:
LOL. But don't you feel better about it. You can also check the stretch by turning the crank and watching the rotor. No need to remove the cover unless the pay is excessive.
HellinnFrnt
New member
I should have said .... since someone took this one apart .... and F'd up the gasket ...
Last Mohecian
Administrator
I'll post a link here on how to check chain wear for anyone in the future. This is written for SBC but it pretty much applies to any motor with a timing chain.
http://www.ehow.com/how_5852138_check-wear-small-block-chevy.html
http://www.ehow.com/how_5852138_check-wear-small-block-chevy.html
