Setting Pump Intake

[TX-19 SBC]

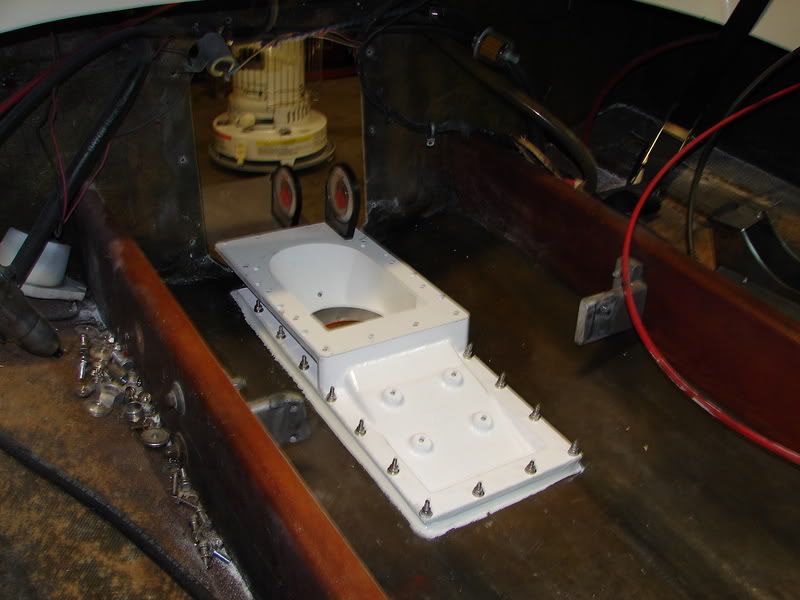

Need Help and Advice on setting a Pump Intake back into a TX-19.  I have heard about 4 Degrees but do not know if 4 Degrees Up or Down or if Pump Intake should be at 0 Degress and the ride plate at 4 degrees.


Thank you


Paul Martin



[72hondo]

Small blocks suck!!!

I didn't think you we're on the boards. after I heard about your fly wheel incident I tried to get a hold of you but I may have the wrong number.

Hope everything's good with you.



[jetboatperformance]

Need Help and Advice on setting a Pump Intake back into a TX-19.  I have heard about 4 Degrees but do not know if 4 Degrees Up or Down or if Pump Intake should be at 0 Degress and the ride plate at 4 degrees.


Thank you


Paul Martin

Hi Paul the 4* reference is to the flat intake mounting plate vs the boat keel , assuming your working with a 4* intake casting to start with , you'll want to get the hull on solid footing (garage/shop floor) and get the keel level (for aft/ right left) then after you have tapped 4 corners of your intake for leveling screws , you'll want to match the front lower radius of your intake casting at + or - 1/32 to the forward intake hull opening and with an inclinometer or digital angle finder your intake mounting plate will then be adjusted (with the leveleing screws) to 3.7 to 4.0 degrees , once your good with that its time to dope with epoxy and set.... theres alot more so call if I can help



[duanehydro]

There ya go...Thanks, Tommy! how ya doin'? :smile16:



[blazeracer]

Small blocks suck!!!

I didn't think you we're on the boards. after I heard about your fly wheel incident I tried to get a hold of you but I may have the wrong number.

Hope everything's good with you.

I was thinking "who's this guy talking smack about small blocks" when I realized it's that guy with the blown small block.



[blazeracer]

Need Help and Advice on setting a Pump Intake back into a TX-19.  I have heard about 4 Degrees but do not know if 4 Degrees Up or Down or if Pump Intake should be at 0 Degress and the ride plate at 4 degrees.


Thank you


Paul Martin

Hi Paul the 4* reference is to the flat intake mounting plate vs the boat keel , assuming your working with a 4* intake casting to start with , you'll want to get the hull on solid footing (garage/shop floor) and get the keel level (for aft/ right left) then after you have tapped 4 corners of your intake for leveling screws , you'll want to match the front lower radius of your intake casting at + or - 1/32 to the forward intake hull opening and with an inclinometer or digital angle finder your intake mounting plate will then be adjusted (with the leveleing screws) to 3.7 to 4.0 degrees , once your good with that its time to dope with epoxy and set.... theres alot more so call if I can help

So answer the plus or minus question, the angle finder on the keel is set to zero, the angle finder on the intake is at 3.7 to 4. The low end of the intake is the back or the front?



[jetboatperformance]

Small blocks suck!!!

I didn't think you we're on the boards. after I heard about your fly wheel incident I tried to get a hold of you but I may have the wrong number.

Hope everything's good with you.

I was thinking "who's this guy talking smack about small blocks" when I realized it's that guy with the blown small block.

Cut my "baby teeth" on Small Blocks and Love em ! Can make some serious power with the little ones for sure

There ya go...Thanks, Tommy! how ya doin'? :smile16:

Hi Duane , were freezin azz in Cali Belive it or not, hunker down cranking out some "Projects" and getting the Aggressor line up ready , we have several New products to introduce from JBP and Aggressor Performance soon



[72hondo]

Small blocks suck!!!

I didn't think you we're on the boards. after I heard about your fly wheel incident I tried to get a hold of you but I may have the wrong number.

Hope everything's good with you.

I was thinking "who's this guy talking smack about small blocks" when I realized it's that guy with the blown small block.

Those LS Guys I tell ya, if its not plugged into a laptop they have no idea what's going on.



[duanehydro]

Small blocks suck!!!

I didn't think you we're on the boards. after I heard about your fly wheel incident I tried to get a hold of you but I may have the wrong number.

Hope everything's good with you.

I was thinking "who's this guy talking smack about small blocks" when I realized it's that guy with the blown small block.

Those LS Guys I tell ya, if its not plugged into a laptop they have no idea what's going on.

:cheesy:



[blazeracer]

Those LS Guys I tell ya, if its not plugged into a laptop they have no idea what's going on.

Hold on a second.........

Ok, what the hell are you talking about???

LOL



[Becket]

Those LS Guys I tell ya, if its not plugged into a laptop they have no idea what's going on.

Hold on a second.........

Ok, what the hell are you talking about???

LOL

You have a screw loose, Really, look.  crazy.gif



[TX-19 SBC]

Thank you for the Instructions.  On the Epoxy what do you use.  I have been told to use Marine-Tex.  I have been doing lots of work on the boat with The West Epoxy resin.  Is there a brand of epoxy to use?

Thank you

Paul



[Michael Swindoll]

Here's what you need sea going epoxy! qt kit also! Pint will do it as long as you don't waist none!
http://www.danamarineproducts.com/ProductDetails.cfm?group_id=32&catid=290&productid=1693&CFID=5038674&CFTOKEN=3de0e18-bef09946-572d-45a8-8147-dfea81779172



[jetboatperformance]

Thank you for the Instructions.  On the Epoxy what do you use.  I have been told to use Marine-Tex.  I have been doing lots of work on the boat with The West Epoxy resin.  Is there a brand of epoxy to use?

Thank you

Paul

Never been a fan of Marine tex , we use Sea Going epoxy putty as we sell alot , the product inventory turns quickly our Kits are $64 plus UPS  Tom

and With due respect to Dana thier epoxy kit is significantly higher priced than Jet Boat Performance  :smile17:



[ChryslerJet]

Thank you for the Instructions.  On the Epoxy what do you use.  I have been told to use Marine-Tex.  I have been doing lots of work on the boat with The West Epoxy resin.  Is there a brand of epoxy to use?

Thank you

Paul

Never been a fan of Marine tex , we use Sea Going epoxy putty as we sell alot , the product inventory turns quickly our Kits are $64 plus UPS  Tom

and With due respect to Dana thier epoxy kit is significantly higher priced than Jet Boat Performance  :smile17:

And Tom is a member here so support our members



[Michael Swindoll]

That was just a example with a pic! I always buy mine from Duane at HTP his is like $60 also! Hi-techperformance.com or just use JBP either one is great!
